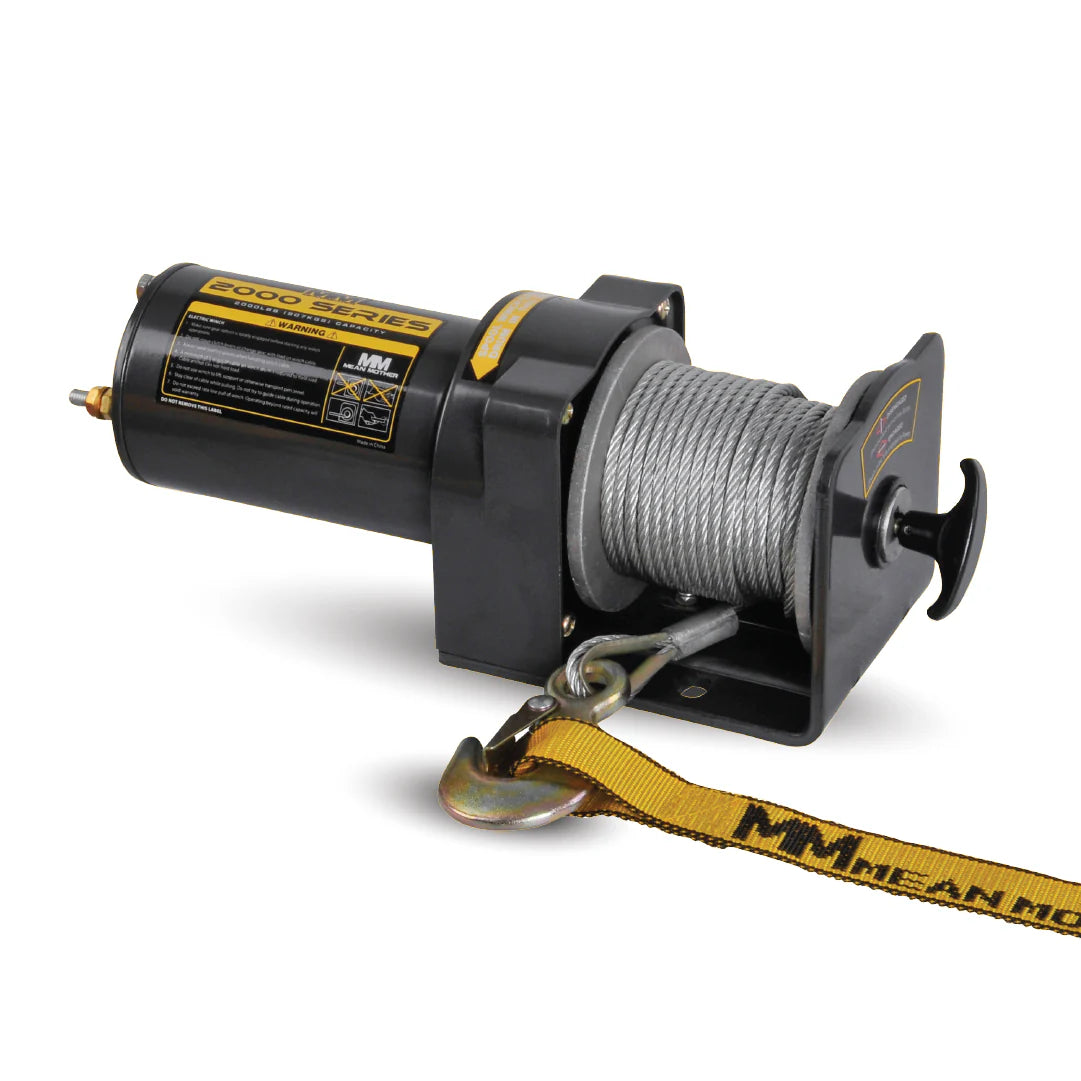

Mean Mother ATV Winch 2000lb

Mean Mother ATV EW2000 winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.

Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

Why you need our 2000 Series Winch

• One Stage Planetary quality components
• Forward and reverse operation with Free spool function
• Steel bushings
• Steel gears

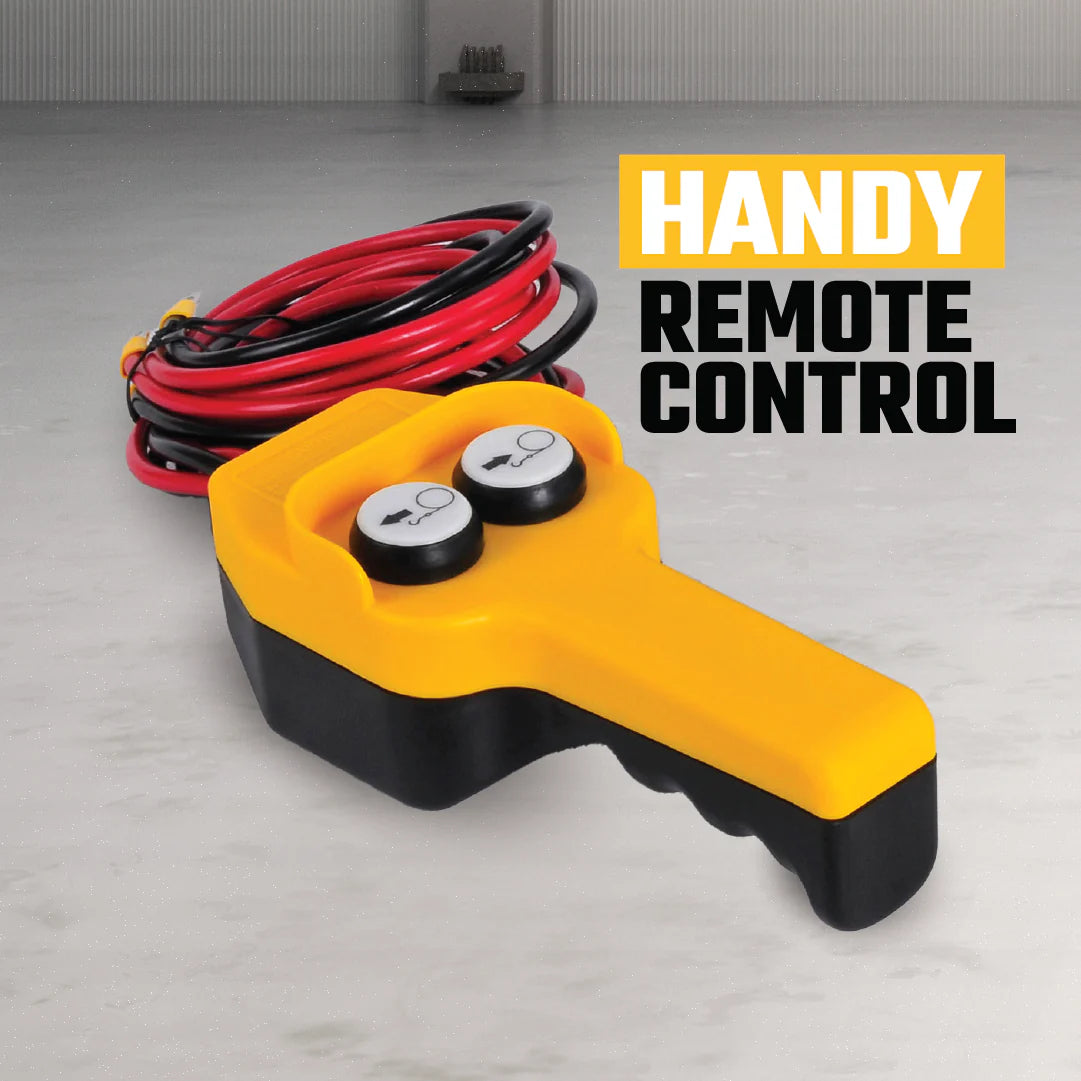

• Hand Control
• 4mm x 15.2 m. (5/32 x 50) Construction galvanised aircraft cable.
• Thimble in cable eyelet provides reinforcement and maximum strength.

What's in the box

• Winch
• Hand control with power leads
• 4mm 15.2m, (7-19 construction galvanised aircraft cable)
• 1/4 Clevis Hook
• Hand Saver Hook Strap
• Detailed Instruction Manual
• Warranty registration Card
• Winch Mounting Hardware (Bolts, washers and Nuts)
• 12 Month Warranty

General Information

• Specifications 2000lb (907kg)
• Voltage 12 Volt
• Gear Ratio 153:1
• Gear Tran 1 Stage Planetary
• Clutch Spline joint clutch
• Motor Type Permanent magnet
• Motor 1.5 Hp, 1 Kw
• Control Hand control, 1.12m lead
• Braking Self locking brake
• Drum Size 32mm x 71mm (1.26 x 2.8)
• Cable Galvanised Aircraft Cable) 4mm x 15.2m (5/32 x 50)
• Clevis Hook 1/4
• Overall Dimensions 320mm x 105mm x 110.5mm (12.6 x 4.13 x 4.35)
• Net Weight 6.6kg
• Mounting Bolt Pattern 48mm x 76mm (1.89 x 3)
• Battery Power Cables 2 x 1120mm x 6mm
• Motor Power Cables 2 x 1120mm x 6mm
• Finish Powder Coating

Performance of 1st Layer

• Line Pull Line Speed Motor Amp Draw Voltage
• 0 lbs 0 kgs 13 Fpm 4.0 Mpm 19 12 Volt
• 1000 lbs 454 kgs 10 Fpm 3.1 Mpm 70 12 Volt
• 1500 lbs 680 kgs 8.2 Fpm 2.5 Mpm 90 12 Volt
• 2000 lbs 907 kgs 6.5 Fpm 2.0 Mpm 110 12 Volt

Line Pull & Cable Capacity by Layer
Cable Layer Rated Line Pull Cable Capacity
1 2000 lbs 907 kgs 6 Feet 1.8 Metres
2 1636 lbs 742 kgs 13Feet 4.0 Metres
3 1385 lbs 628 kgs 22 Feet 6.7 Metres
4 1200 lbs 544 kgs 33 Feet 10.0 Metres
5 1059 lbs 480 kgs 44 Feet 13.4 Metres
6 947 lbs 430 kgs 50 Feet 15.2 Metres
