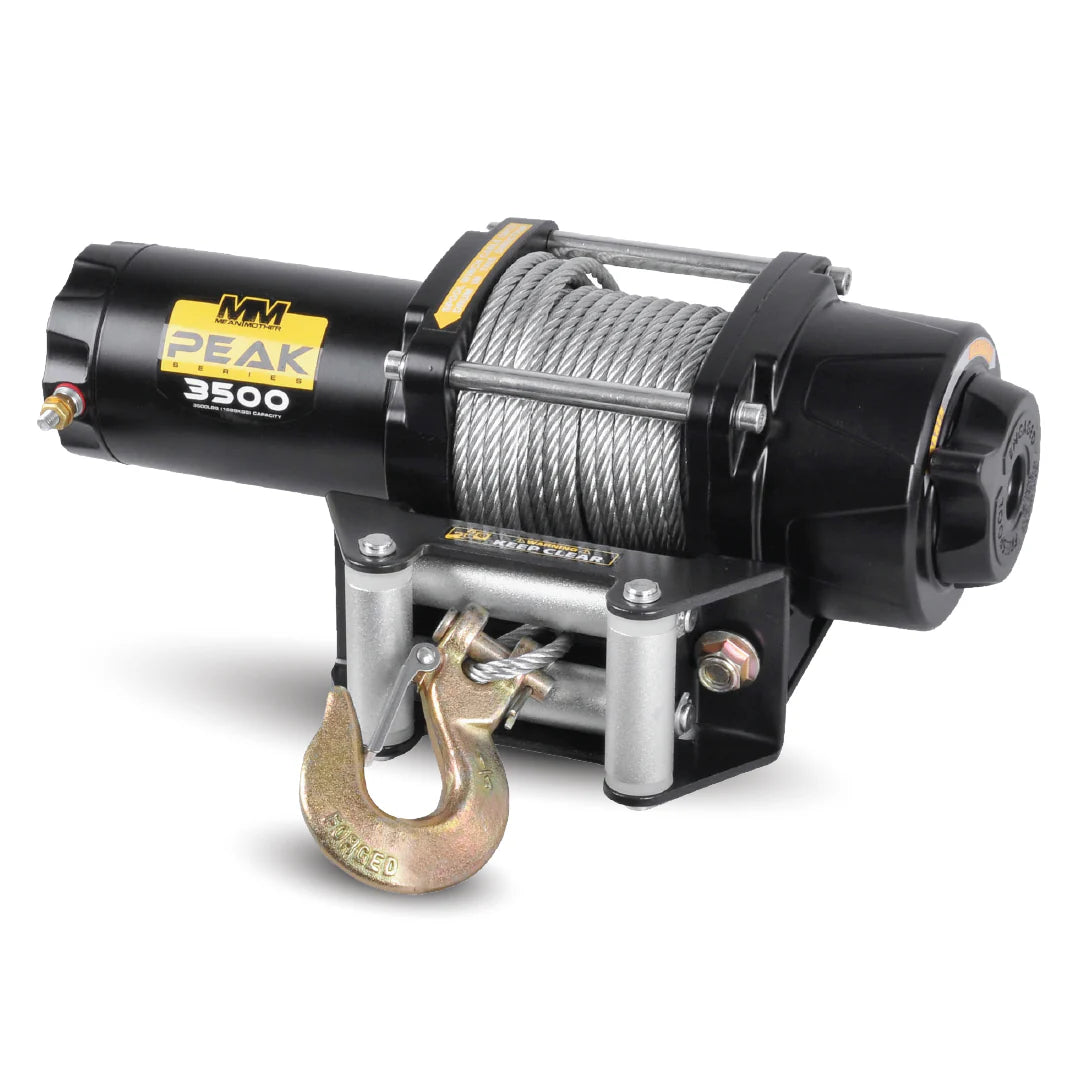

ATV Winch 3500lb

Mean Mother ATV 3500lb winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.

The 2500lb and 3500lb models are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

WHY OUR PEAK ATV WINCHES ARE REALLY GOOD

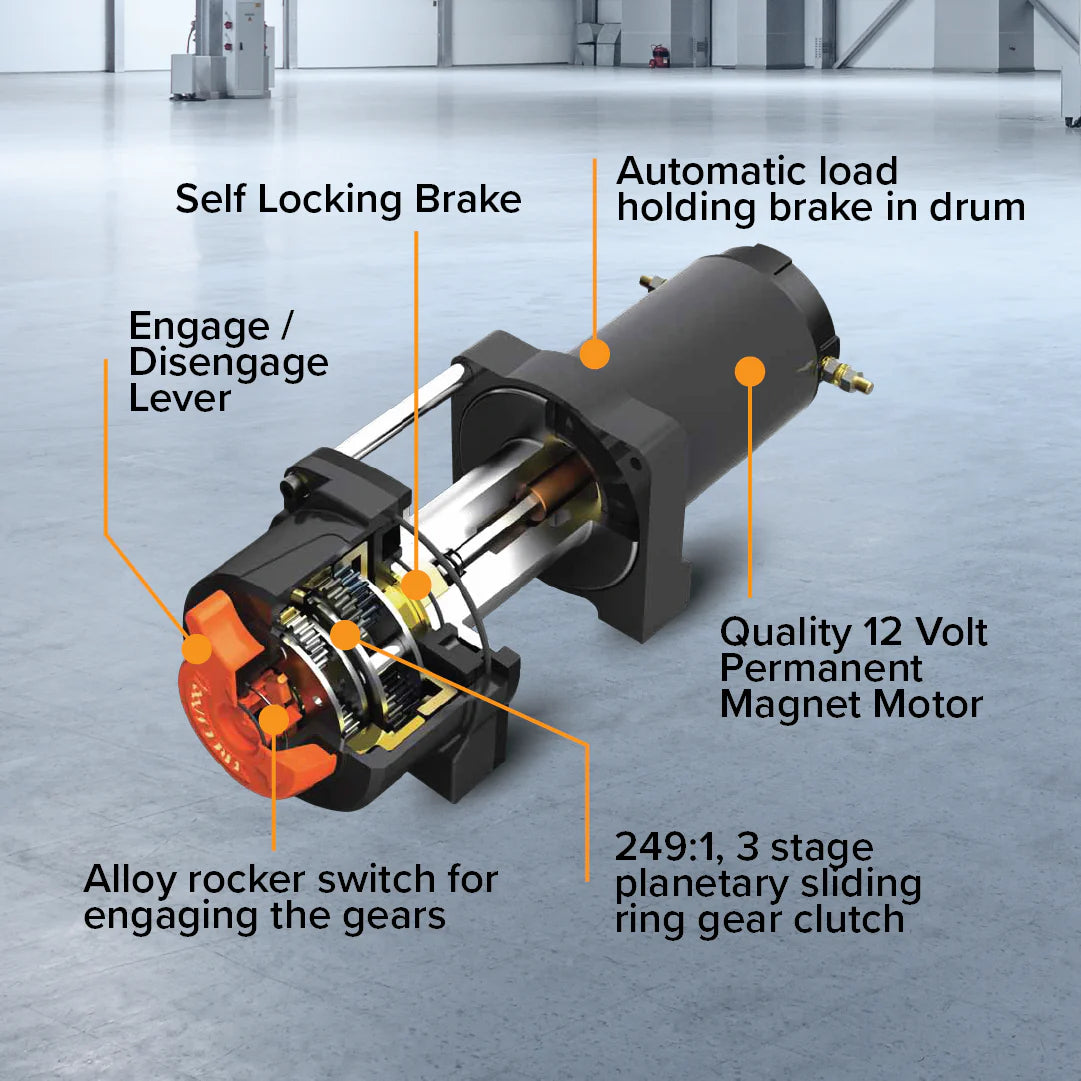

• Forward and reverse operation with Free spool function
• Two Stage Planetary quality components Sintered Steel Bushes & Hardened Steel Gears
• Waterproof contactor (solenoid) system. Permanently mounts to ATV
• Waterproof quality plug with protective cap
• Mountable handle bar Forward and reverse toggle switch
• Thimble in cable eyelet provides reinforcement and maximum strength
• 5.56mm x 12m (3500lb) 7-19 Construction galvanised aircraft cable

What's in the box

• Winch
• Winch mounting plate
• Solenoid (contactor)
• Handle bar switch with mounting bracket
• Power cable kit
• 5.56mm x 12m (3500lb) 7-19 Construction galvanised aircraft cable.
• Roller Fairlead
• 1/4" Clevis Hook
• Hand Saver Hook Strap
• Detailed Instruction Manual
• Warranty registration Card
• Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)

General Information

• Specifications 3500lb (1589kg)
• Voltage 12 Volt
• Gear Ratio 242:1
• Gear Tran 2 Stage Planetary
• Clutch Turn 90° by handle
• Motor Type Permanent magnet
• Motor 3.5 Hp, 2.61 Kw
• Control Handle bar mountable switch, 2.4m lead
• Braking Self Locking brake
• Drum Size 50mm x 80mm(2.5" x 3.15")
• Cable 5.56mm x 12m (3500lb) 7-19 Construction galvanised aircraft cable.
• Clevis Hook 1/4"
• Overall Dimensions 344.5mm x 116mm x 114mm (13.5" x 4.57" x 4.5")
• Net Weight 11.4kg
• Mounting Bolt Pattern 124mm x 76mm (4.88" x 3")
• Battery Power Cables 2 x 2350mm x 10mm
• Motor Power Cables 1 x 600mm x 10mm & 1 x 450mm x 8mm
• Recommended Battery Minimum 650CCA
• Finish Powder Coated

Performance of 1st Layer

• Line Pull Line Speed Motor Amp Draw Voltage
• 0 lbs 0 kgs 18.4 Fpm 5.6 Mpm 30 12 Volt
• 1000 lbs 454 kgs 15 Fpm 4.6 Mpm 86 12 Volt
• 2000 lbs 907 kgs 13.1 Fpm 4 Mpm 136 12 Volt
• 3500 lbs 1589kgs 9.8 Fpm 3 Mpm 230 12 Volt

Line Pull & Cable Capacity by Layer
Cable Layer Rated Line Pull Cable Capacity
1 3500 lbs 1589 kgs 9.2 Feet 2.8 Metres
2 2900 lbs 1317kgs 20.3 Feet 6.2 Metres
3 2500 lbs 1135 kgs 33.1 Feet 10.1 Metres
4 2200 lbs 1000 kgs 47.6 Feet 14.5 Metres
5 1900 lbs 863 kgs 50 Feet 15 Metres
